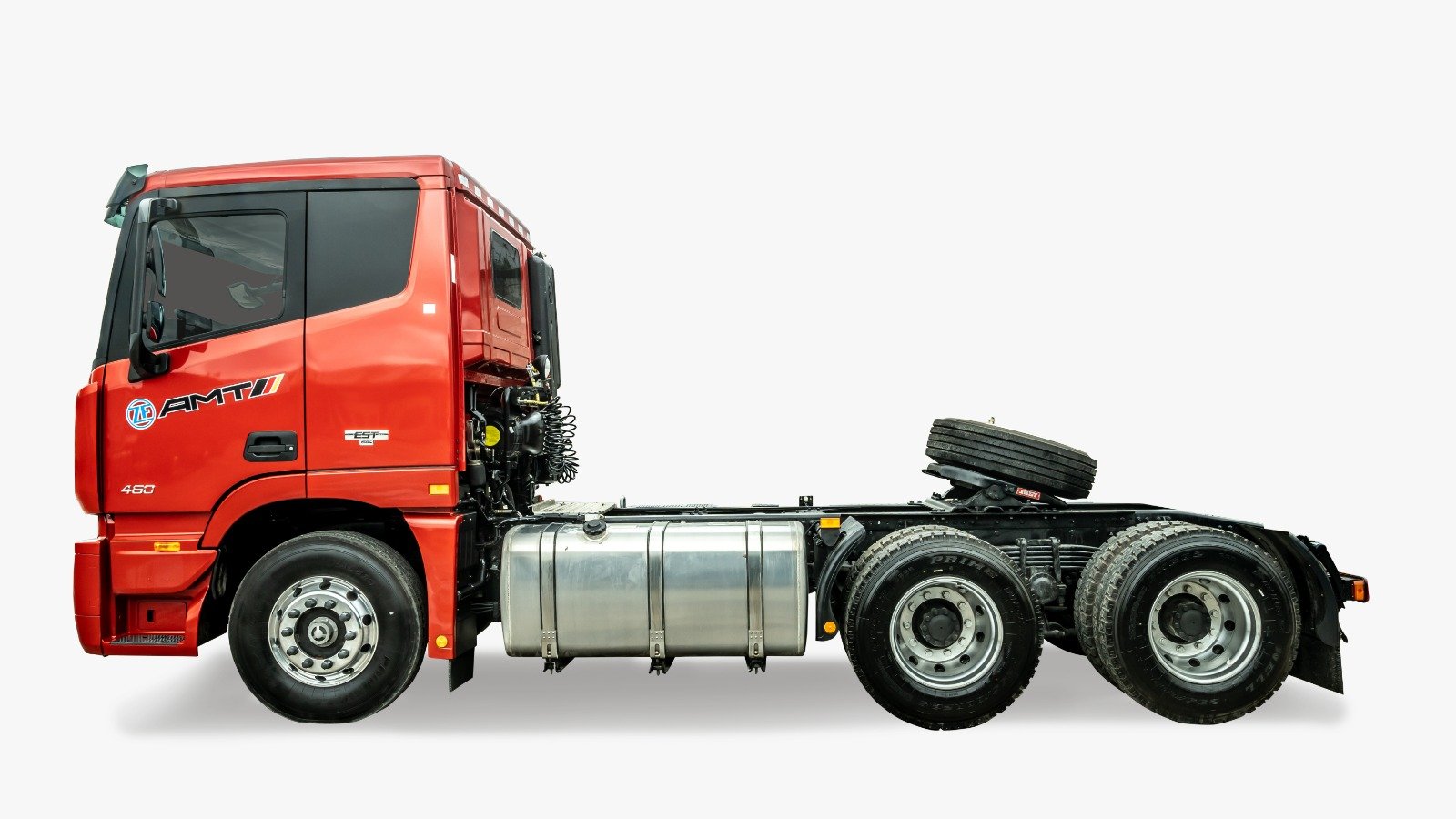

Description
| Model EST Tractor 380HP MT |
||
|
Base informations 基础信息
|
Drive style 驱动方式 | 6*4 |
| Steering wheel position 转向方式 | RHD右舵 | |
| Platform 车辆平台 | EST | |
| Vehicle model 车辆型号 | BJ4259SMFKB-RK | |
|
Chasiss dimension parameters底盘尺寸参数
|
Wheelbase (mm) 轴距 | 3300+1350 |
| Long(mm) 长 | 6950 | |
| Width(mm) 宽 | 2490 | |
| Height(mm) 高 | 3130 | |
|
Complete vehicle mass parameter整车参数
|
Chassis kerb weight（kg）整备质量 | 9200 |
| GCW（kg）载货质量 | 56000 | |
|
Complete vehicle performance parameter整车性能参数
|
Maximum speed (km/h)最大时速 | Full load 101 |
| Maximum climbing capacity, % (full load)最大爬坡角度 | 35 | |
|

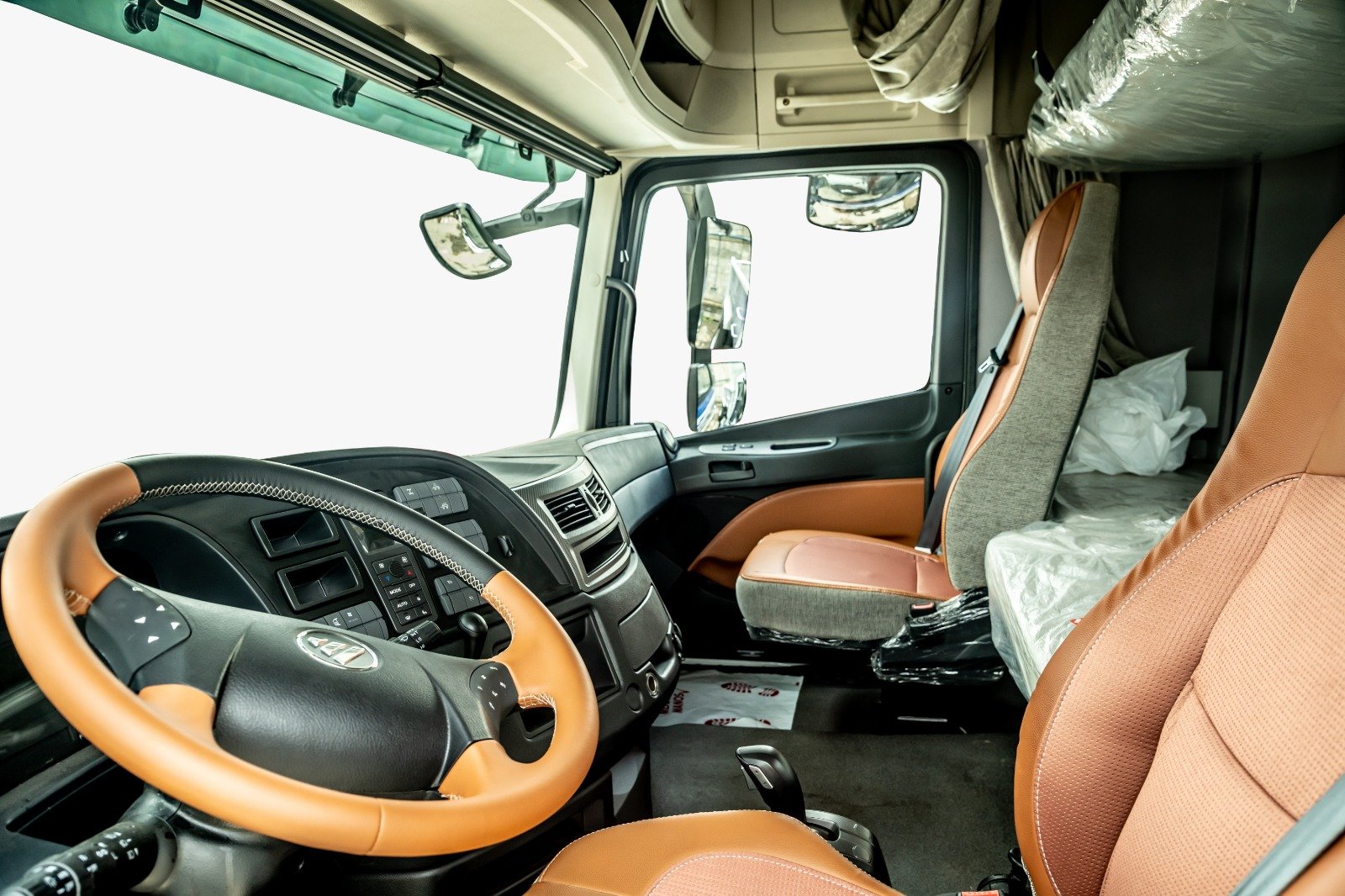

Cab驾驶室
|
Body type车身类型 |
EST-2490 – Flat Roof With A/C EST-2490 底顶带空调
|
| Carrying number载客数 | 2 | |
| Cab suspension type驾驶室悬挂 | Spring 弹簧悬挂 | |
| Cab lift type驾驶室升降式 | Manual手动 | |
|
Engine发动机
|
Engine Model发动机型号 | ISGe3-380 |
| Displacement (L) 排量 | 11.8 | |
| Max power (ps/rpm)最大马力 | 279/380/1900 | |
| Max torque (Nm/rpm)最大扭矩 | 2000/1000-1300 | |
| Engine Brand 发动机厂家 | Cummins康明斯 | |
| Fuel injection system 燃油喷射系统 | High pressure common rail高压共轨 | |
| Emission排放标准 | / | |
|
Clutch 离合器
|
Clutch Type 离合器类型 | φ430 pull type diaphragm spring clutch φ430拉式膜片弹簧离合器 |
| Plate diameter摩擦片直径 | Φ430 | |
|
Gearbox变速箱
|
Gearbox Model变速箱型号 | HW23712 |
| Gearbox Brand变速箱类型 | DACHI MT大齿手动 | |
|
Suspension悬架
|
Front suspension/leaf spring number前悬架/钢板弹簧数量 | 3 |
| Rear suspension/leaf spring number后悬架/钢板弹簧数量 | 5 | |
|
Break制动信息
|
Service Brake主动刹车 | Double circuit air brake双回路空气制动器 |
| Parking brake驻车制动 | Spring energy storage air brake储能式弹簧驻车制动 | |
| Auxiliary brake辅助制动 | Engine brake发动机缸内制动 | |
|
Front axle前桥信息
|
Front axle Rated load 前桥载重 | 6.5T |
| Front axle Brake type 前桥制动类型 | Drum brakes鼓式制动 | |
|
Rear axle后桥信息
|
Rear axle Model后桥类型 | 13T/469 |
| Rated load/gear ratio后桥载重速比 | 13T/3.7 without ABS 不带ABS | |
| Rear axle Brake type后桥制动类型 | Drum brakes鼓式制动 | |
|
Tyre轮胎信息
|
Tyre Model轮胎型号 | 315/80R22.5 18PR |
| Tyre Quantity轮胎数量 | 10+1 | |
| Wheel guard轮罩 | Integral | |
|

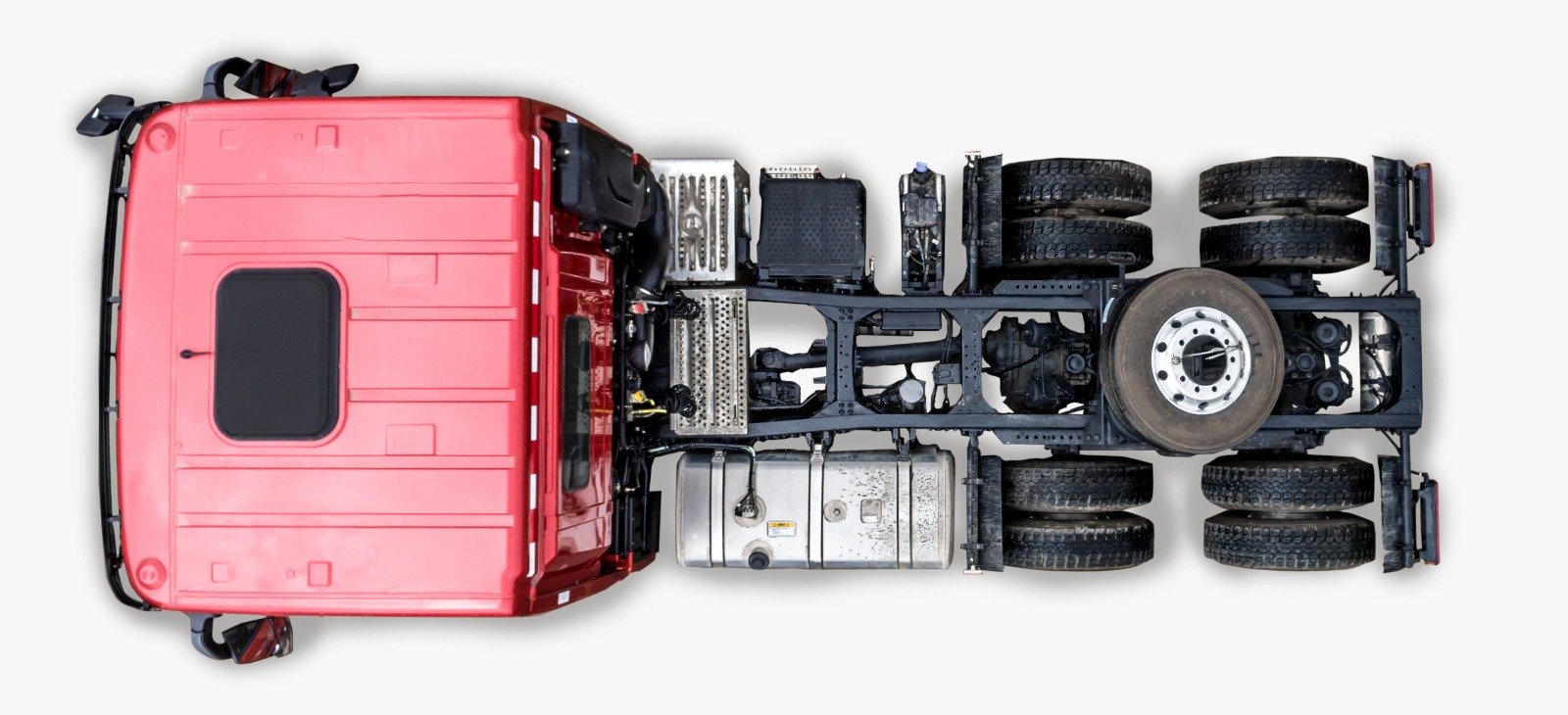

Frame 车架信息
|
External width (mm)外宽 | F900mm/R780mm |
| Stringer cross section (mm)横截面 | 225/286×80×8 | |
| Steering Gear转向机信息 | Steering Gear Model转向机型号 | AM90H-SR |
| Fuel tank油箱 | Fuel tank Cubage and material油箱容量 | 700L （Aluminium alloy） |

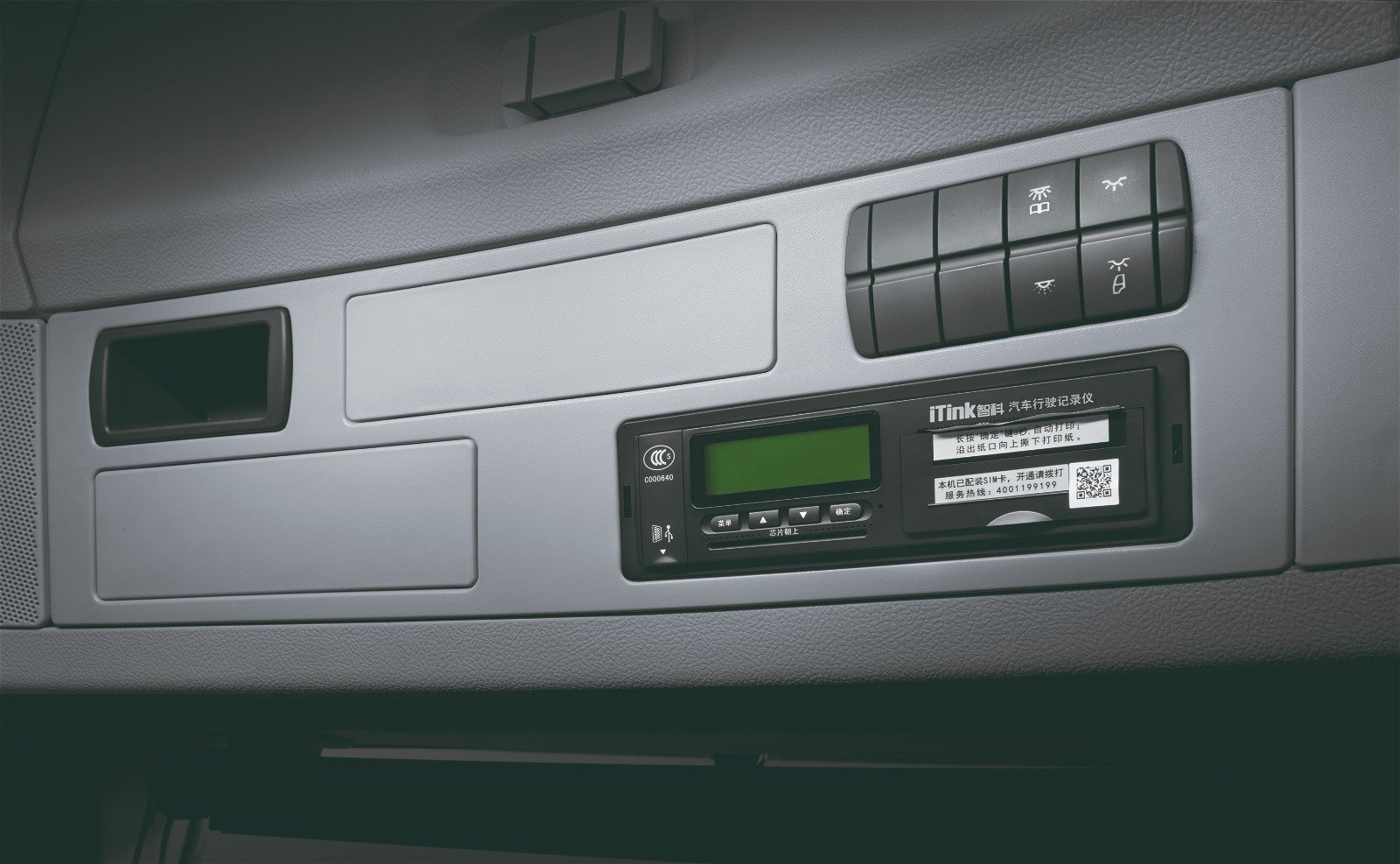

| Entertainment System娱乐系统 | MP3+radio+USB+no radarMP3 +广播+ USB +没有雷达 | |

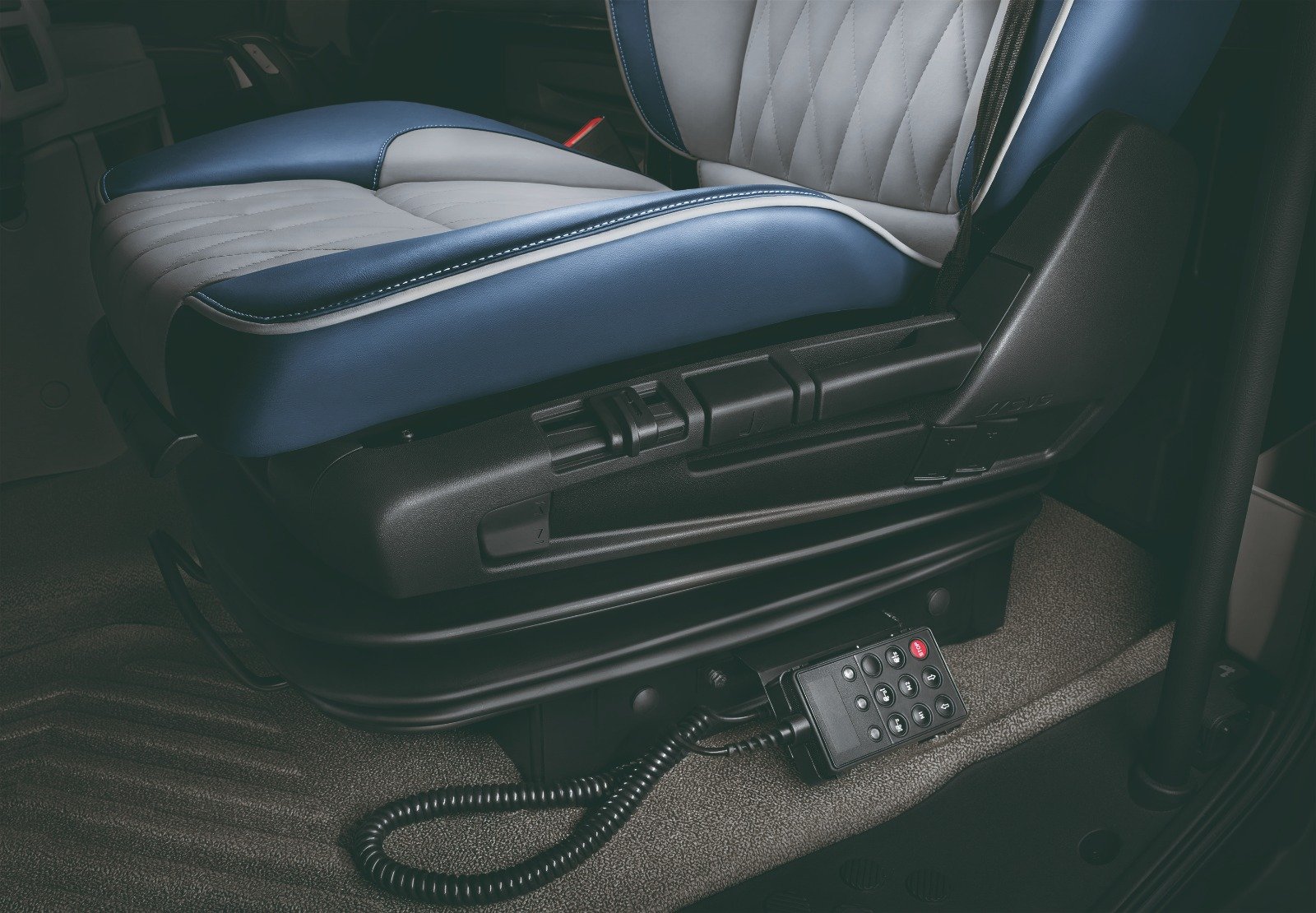

| Cab combination配置信息 | Electric doors and windows + central control lock + remote control door lock + unified five locks + airbag seat (middle configuration) + electric heated rearview mirror电动门窗+中控锁+遥控门锁+统一五锁+安全气囊座椅（中配置）+电加热后视镜 | |
| A/C空调 | Electric电动 | |
