Description
| Model 4×2 Dropside GVW 4.5T – Payload 2.5T |
|||
| Function | Cargo transportation | ||
| Drive style | 4×2 | ||
| Steering wheel position | Right hand drive | ||
| Platform | Miler | ||
| Vehicle model | BJ1044 | ||
|
Complete vehicle dimension parameters
|
Wheelbase (mm) | 2900 | |
| Cab width(mm) | 1730 | ||
| Chassis Dimensions (L × W × H) (mm) | 5455*1970*2110 | ||
| Inner dimensions of the tank body (LxWxH)mm | 3700×1870×400+320 | ||
|
Complete vehicle mass parameter
|
chassis weight（kg） | 1730 | |
| Payload weight(kg)(Dropside) | 2765 | ||
| GVW(design)（kg） | 4495 | ||
|

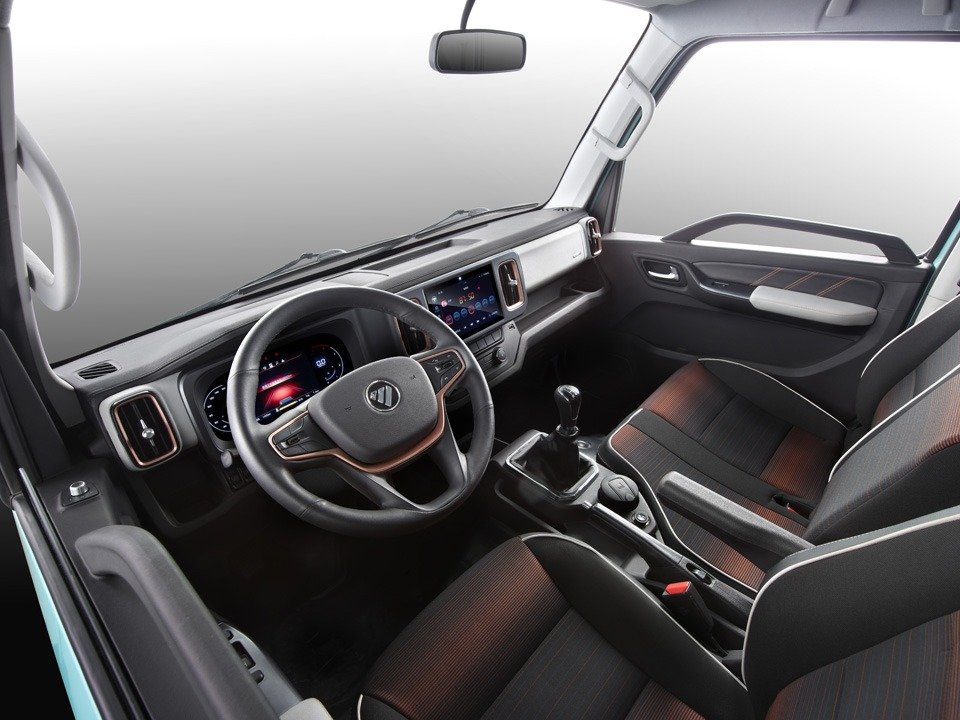

Cab
|
Body type | Single cab | |
| Persons in cab (persons) | 3 | ||
|

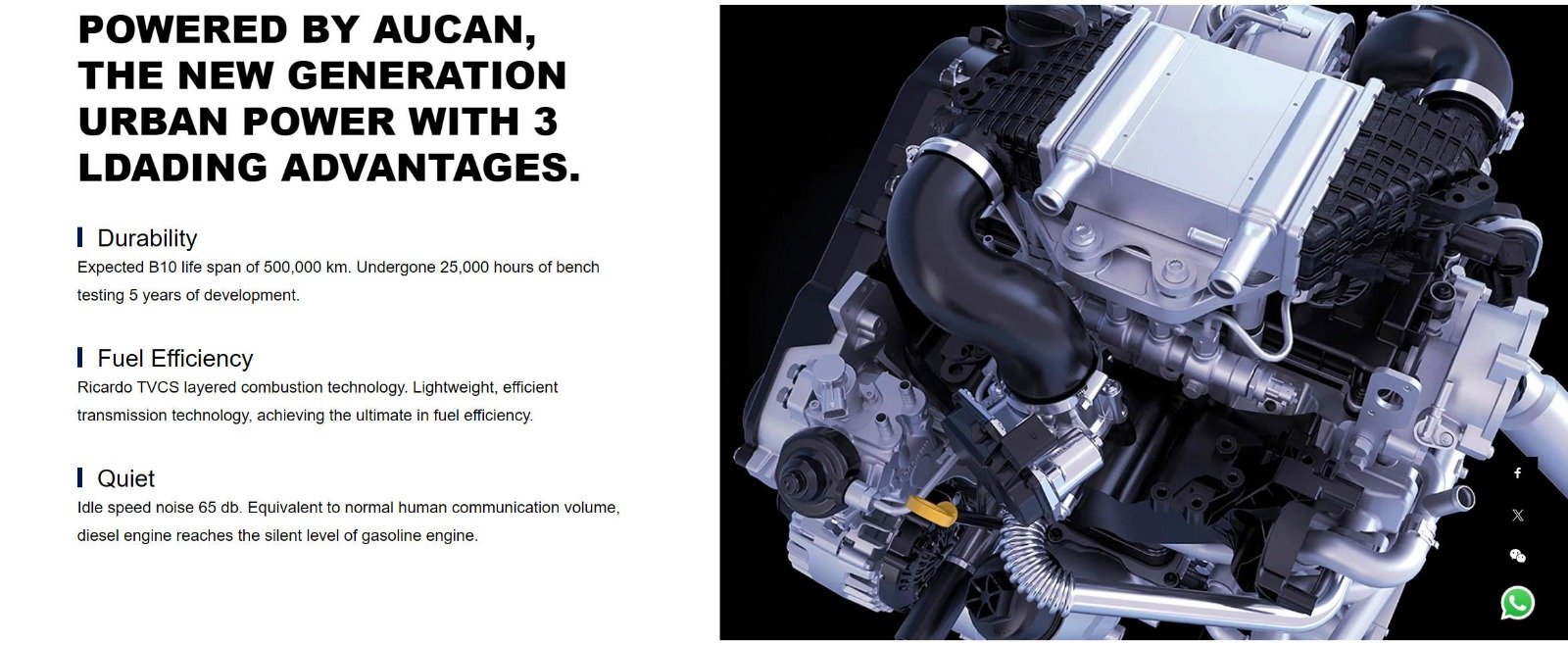

Engine
|
Model | 4F20TC28 | |
| Type | Diesel | ||
| Displacement (L) | 1.968 | ||
| Max power (hp/rpm) | 92kw(125Ps)/3200rpm | ||
| Max torque (Nm/rpm) | 320Nm/1400~2600rpm | ||
| Emission | EURO III | ||
|
Gearbox
|
Model | ZF5S368 | |
| Gears | 5F/1R | ||
|
Brake
|
Service brake | Front disc/Rear drum | |
| Parking brake | Central drum brake | ||
| Auxiliary brake | × | ||
|
Suspension
|
Front suspension/leaf spring number | leaf spring/ 3 nos | |
| Rear suspension/leaf spring number | leaf spring/ 3+1 nos | ||
|
Axle
|
Front Axle | 1.8T | |
| Rear Axle/Gear ratio | 2.7T/4.33 | ||
|
Tyre
|
Model | 195/75R16 | |
| Quantity | 6+1 | ||
| Fuel tank | Capacity and material | 70L plastic | |
| Battery | Battery voltage | 12V | |
